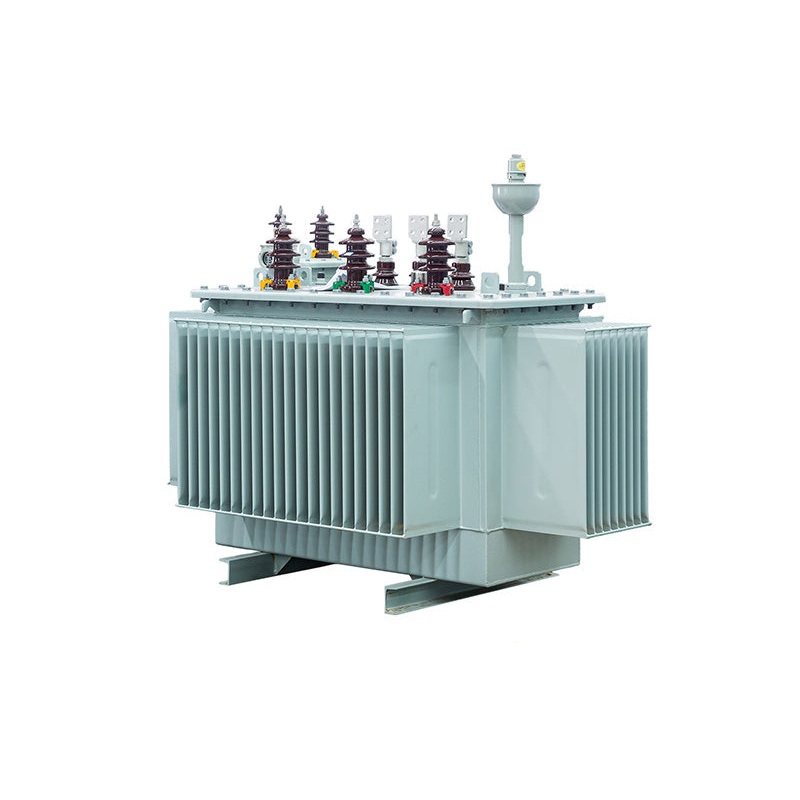

TSTY SG-M-250kva Oil Immersed Isolation Power Transformer (400-400V)

PRODUCT DESCRIPTION

Model

SG-M-250kva

Rated Capacity (KVA)

250

H.V

0.4 KV

L.V

0.4 KV

Short Circuit Impedance

4%

Off load Losses

620(15%)

On load Losses

3120(15%)

H.V Current (A)

360.84

L.V Current (A)

360.84

Winding Material

Copper to Copper 1290*920*1020 mm

Dimension

900 kg

Weight

50HZ

Frequency Vector Group

Dyn11

Phase

3 phase

Type

Oil-immersed

Core

Mineral oil

Cooling Type

Silicon steel sheet

Oil level thermometer

ONAN

Oil level indicator

Equipped

Pressure relief device

Equipped

Warranty

Equipped

Service Lifetime

2 years
